Machining Infrastructure
State-of-the-art machinery and equipment for precision heavy engineering
Key Machines

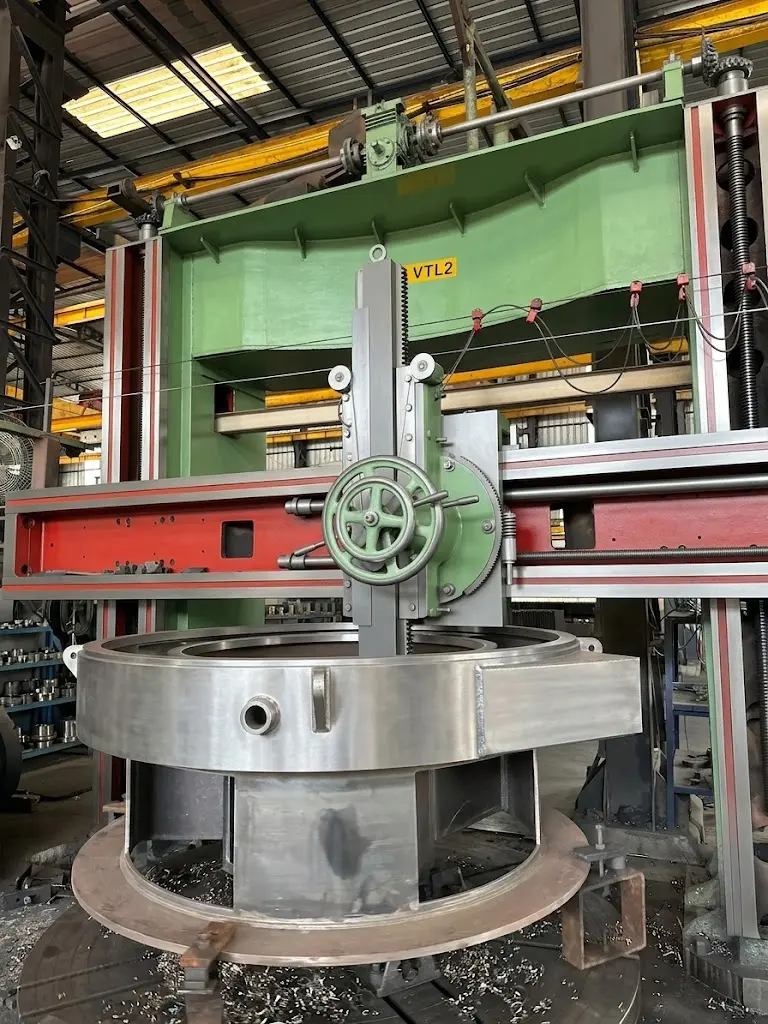

STANKO VTL
Model: 1M553
The STANKO 1M553 Vertical Turning Lathe is the flagship machine at D K Industries, capable of machining large-diameter components with exceptional precision. It is the go-to machine for flanges, heavy rings, and large rotating components.
Technical Specifications
| Machine Type | Vertical Turning Lathe |
| Model | 1M553 |
| Chuck Diameter | 2100 mm |
| Swing Diameter | 2300 mm |
| Maximum Height | 1600 mm |
PBR AF 110 CNC
Model: AF 110
The PBR AF 110 CNC is a high-precision CNC horizontal boring and milling machine that handles complex multi-face machining operations. With its FANUC OiMF Plus controller and through-spindle coolant, it delivers outstanding surface finish and dimensional accuracy for complex castings and engineering components.
Technical Specifications
| Spindle Diameter | 110 mm |
| Table Size | 1500 × 1200 mm |
| Spindle Taper | SK50 / CT50 |
| Spindle RPM | 2500 rpm |
| X Axis Travel | 1500 mm |
| Y Axis Travel | 1200 mm |
| Z Axis Travel | 1500 mm |
| W Axis Travel | 500 mm |
| B Axis Resolution | 0.001° |
| ATC Capacity | 60 Tools |
| CNC Controller | Fanuc OiMF Plus |
| Coolant | Through Spindle Coolant |
Our Machine Park
A comprehensive range of machines enabling complete in-house machining capability.
CNC Machines
Multiple CNC machining centers for high-precision complex component machining with FANUC and Siemens controls.
HMC Machines
Horizontal machining centers for multi-face machining of large and medium-sized components in a single setup.
VMC Machines
Vertical machining centers delivering precision milling, drilling, and tapping for a wide variety of components.
VTL Machines
Vertical turning lathes including the STANKO 1M553 for large-diameter component turning and facing.
Boring Machines
Horizontal boring machines for precision line boring, milling, and facing of large and heavy components.
Plano Millers
Large table plano-milling machines for heavy component milling, ensuring flatness and accuracy over large surfaces.
Radial Drills
Heavy-duty radial drilling machines with extended reach for drilling, tapping, and reaming of large workpieces.
Lathe Machines
Conventional and CNC lathe machines of various capacities for turning, threading, and profile machining.
Welding Machines
MIG, TIG, and SAW welding equipment operated by certified welders for structural and pressure vessel fabrication.
Band Saw Machines
Heavy-duty band saws for accurate cutting of large sections, billets, and structural profiles.
Hydraulic Presses
High-capacity hydraulic presses for press-fitting, straightening, and forming of heavy components and assemblies.
